| Nama Wahi | LTA520HB03-001 |
| Waitohu | Samsung |
| Rahi | 52 |
| Taupānga | LCTV |
| Whakatau | 1920×1080 |
| Te tito | LCM |
| Tirohanga | 500 |
| CR | 2000:1 |
| Nga Tae | 16.7M |
| Whakamuri | CCFL |
| Atanga | LVDS |
| panel brand | SAMSUNG |

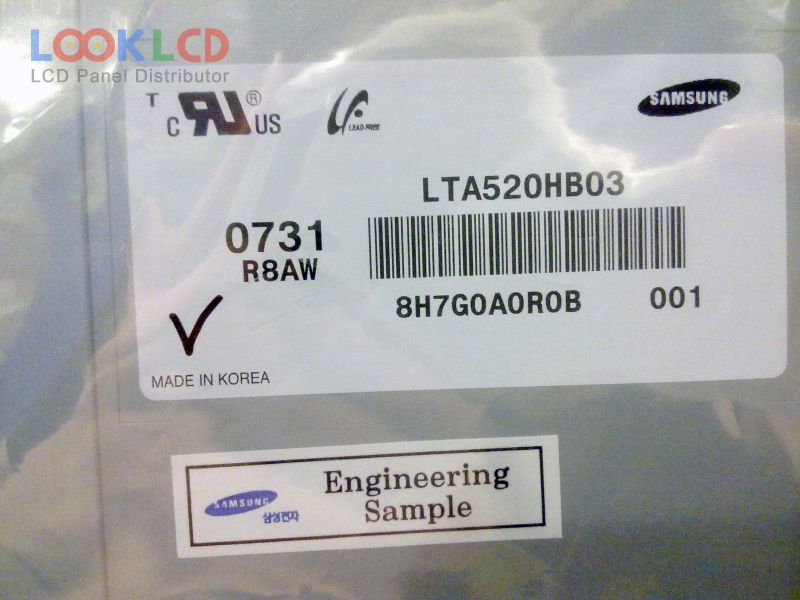

| panel model | LTA520HB03-001 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 52 inch |
| resolution | 1920(RGB)×1080 , FHD |
| display mode | S-PVA, Normally Black, Transmissive |
| active area | 1152×648 mm |
| outline | 1226×719.2 mm |
| surface | Antiglare (Haze 44%), Hard coating (3H) |
| brightness | 500 cd/m² (Typ.) |
| contrast ratio | 2000:1 (Typ.) |
| display colors | 16.7M (8-bit), CIE193172% |
| response time | 10/6 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| viewing angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 24 pcsCCFLEmbedded (Inverter) |
| signal interface | LVDS (2 ch, 8-bit), 51 pins |
| input voltage | 12.0V (Typ.) |
| application | LCTV |
| LC520WU1-SLB2 | LG Display | 52 | 1920×1080 |
| LTA520HB03 | Samsung | 52 | 1920×1080 |
| LTA520HB03-001 | Samsung | 52 | 1920×1080 |
| LTA520HB04 | Samsung | 52 | 1920×1080 |
| LTA520HB09 | Samsung | 52 | 1920×1080 |
| LTA520HB13 | Samsung | 52 | 1920×1080 |
| LTA520HC05 | Samsung | 52 | 1920×1080 |
| LTA520HE05 | Samsung | 52 | 1920×1080 |
| LTY520HB10 | Samsung | 52 | 1920×1080 |
| LTY520HE03 | Samsung | 52 | 1920×1080 |
| LC171W03-B4K1 | LG Display | 17.1 | 1280×768 |
| LC320W01-SL01 | LG Display | 31.5 | 1366×768 |
| LC420WUN-SCB1 | LG Display | 42 | 1920×1080 |
| LSC550FN05 | Samsung | 55 | 3840×2160 |
| T260XW06 V2 | AUO | 26.0 | 1366×768 |
| T315HB01 V1 | AUO | 31.5 | 1920×1080 |
| T315XW06 V6 | AUO | 31.5 | 1366×768 |
| T420HW07 V1 | AUO | 42 | 1920×1080 |
| T500HVN02.2 CELL | AUO | 50 | 1920×1080 |
| V320B1-L06 | Innolux | 32.0 | 1366×768 |
