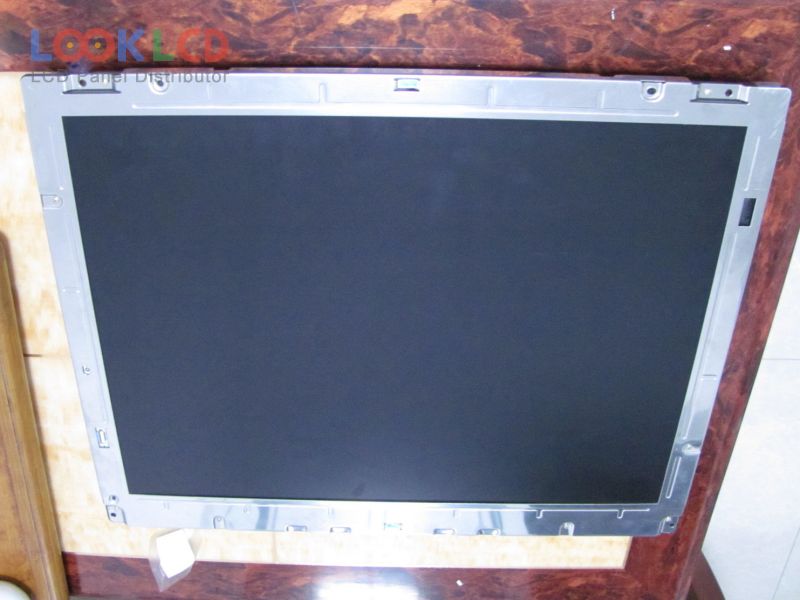

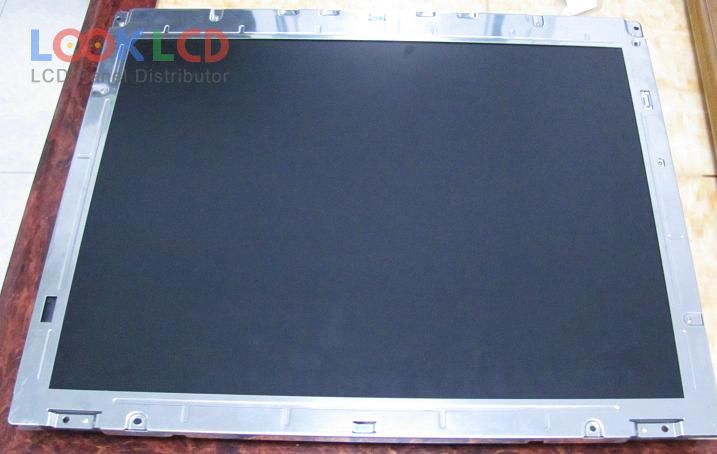

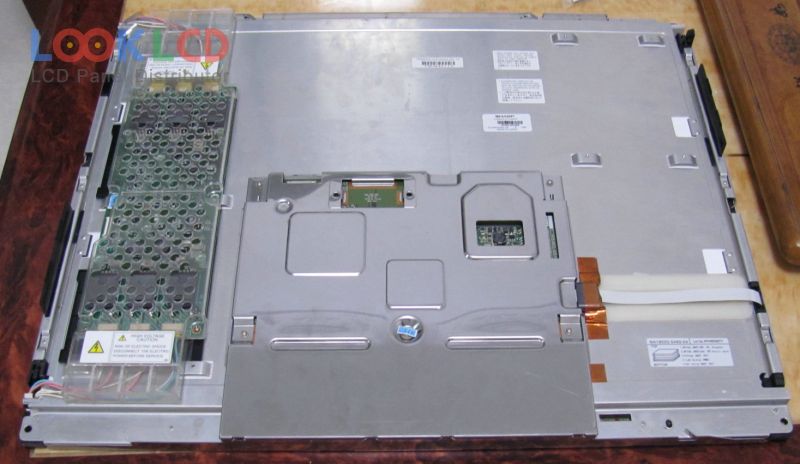

| Nama Wahi | LQ231U1LW01 |
| Waitohu | SHARP |
| Rahi | 23.1 |
| Taupānga | IA |
| Whakatau | 1600×1200 |
| Te tito | LCM |
| Tirohanga | 250 |
| CR | 500:1 |
| Nga Tae | 16.7M |
| Whakamuri | CCFL |
| Atanga | OpenLDI |
| panel brand | SHARP |
| panel model | LQ231U1LW01 1 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 23.1 inch |
| resolution | 1600(RGB)×1200 , UXGA |
| display mode | MVA, Normally Black, Transmissive |
| active area | 470.4×352.8 mm |
| outline | 530×432.8×33.5 mm |
| surface | Antiglare (Haze 25%), Hard coating (3H) |
| brightness | 250 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 16.7M (8-bit) |
| response time | 20/10 (Typ.)(Tr/Td); 15 (Typ.)(G to G) |
| viewing angle | 85/85/85/85 (Min.)(CR≥10)(L/R/U/D) |
| lamp type | 6 pcsCCFLEmbedded (Inverter) |
| signal interface | OpenLDI, 31 pins |
| input voltage | 5.0V (Typ.) |
| application | IA |
| LQ231U1LW01 | SHARP | 23.1 | 1600×1200 |
| LQ231U1LW21 | SHARP | 23.1 | 1600×1200 |
| EL320.240.36 | Lumineq | 5.7 | 320×240 |
| G121SN01 V4 | AUO | 12.1 | 800×600 |
| G150XG03 V2 | AUO | 15.0 | 1024×768 |
| KG057QV1CA-G02 | Kyocera | 5.7 | 320×240 |
| LM64183P | SHARP | 9.4 | 640×480 |
| LQ064V3DG01 | SHARP | 6.4 | 640×480 |
| RGS10096064FR020 | RiTdisplay | 0.95 | 96×64 |
| T-55692D070H-LW-A-AAN | Kyocera | 7.0 | 800×480 |
| TM057QVHG01 | Tianma | 5.7 | 640×480 |
| UG-5664ASGGF01 | WiseChip | 5.5 | 256×64 |
