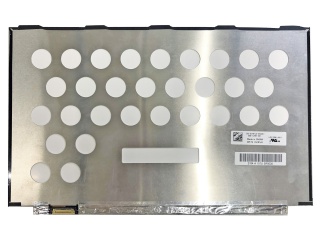

Nama Wahi | LQ133Z1JW04-E |
Waitohu | Sharp |
Rahi | 13.3 |
Taupānga | Laptop |
Whakatau | 3200×1800 |
Te tito | LCM, Oxide TFT-LCD |
Tirohanga | |
CR | 1000:1 |
Nga Tae | 16.7M |
Whakamuri | WLED |
Atanga | eDP |
manufacturer | Sharp |
model name | LQ133Z1JW04-E |
screen size | 13.3 inch |
screen type | LCM, Oxide TFT-LCD |
pixel number | 3200(RGB)×1800 276PPI |
arrangement | RGB Vertical Stripe |
active area(mm) | 293.76 × 165.24 (H×V) |
outline(mm) | - |
luminance | - |
contrast ratio | 1000 : 1 (Typ.) (TM) |
viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
response | 25 (Typ.)(Tr+Td) ms |
good view at | Symmetry |
work mode | VA, Normally Black, Transmissive |
color depth | 16.7M |
backlight | WLED , 15K hours , With LED Driver |
outline shape | Slim (PCBA Flat, T≤3.2mm) |
used for | Laptop |
refresh rate | 60Hz |
touchscreen | Without |
signal type | eDP (4 Lanes) , Connector 40 pins |
voltage supply | 3.3V (Typ.) |
max. ratings | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
