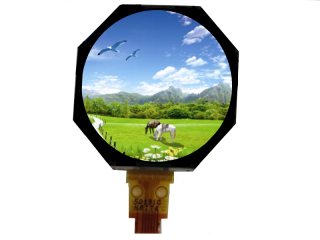

Nama Wahi | LPM010M297B |
Waitohu | JDI |
Rahi | 1.0 |
Taupānga | Wearable Round Displ |
Whakatau | 208×208 |
Te tito | LTPS TFT-LCD , LCM |
Tirohanga | |
CR | 30:1 |
Nga Tae | 16.7M |
Whakamuri | No |
Atanga | |
panel brand | JDI |
panel size | 1.0" |
resolution | 208(RGB)×208, 200PPI |
display area | 26.2912(W)×26.2912(H) mm |
outline size | 29.291(W)×30.591(H) mm |
brightness | 0 cd/m² |
viewing angle | 65/65/65/65 (Typ.)(CR≥10) |
best view on | Symmetry |
display colors | 16.7M 23% NTSC |
frequency | 60Hz |
weight | TBD |
panel model | LPM010M297B |
panel type | LTPS TFT-LCD , LCM |
pixel format | RGB Vertical Stripe |
bezel opening | - |
surface | Hard coating (2H) |
contrast ratio | 30:1 (Typ.) (RF) |
display mode | ECB, Normally Black, Reflective |
response time | 4/6 (Typ.)(Tr/Td) |
lamp type | No B/L |
touch screen | Without |
application | Wearable Round Display |
