| Nama Wahi | LM290WW2-SSB1 |
| Waitohu | LG Display |
| Rahi | 29.0 |
| Taupānga | Desktop Monitor Indu |
| Whakatau | 2560×1080 |
| Te tito | a-Si TFT-LCD , LCM |
| Tirohanga | |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | 17S4P |
| Atanga | LVDS |
| panel brand | LG Display |
| panel size | 29.0" |
| resolution | 2560(RGB)×1080, CSHD, 96PPI |
| display area | 672.768(W)×283.824(H) mm |
| outline size | 693.6(W)×308.9(H) ×17.5(D) mm |
| brightness | 300 cd/m² (Typ.) |
| viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| best view on | Symmetry |
| display colors | 16.7M 99% sRGB |
| frequency | 60Hz |
| panel weight | 3.12/3.28Kgs (Typ./Max.) |
| signal interface | LVDS (4 ch, 8-bit) , 92 pins Connector |
| input voltage | 10.0V (Typ.) |
| environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |

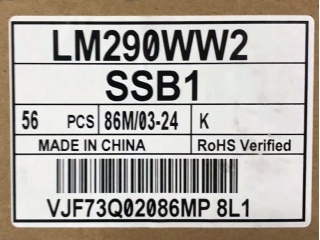

| panel model | LM290WW2-SSB1 |
| panel type | a-Si TFT-LCD , LCM |
| pixel format | RGB Vertical Stripe |
| bezel opening | - |
| surface | Antiglare (Haze 25%), Hard coating (3H) |
| contrast ratio | 1000:1 (Typ.) (TM) |
| display mode | IPS, Normally Black, Transmissive |
| response time | 14 (Typ.)(G to G) |
| lamp type | 17S4P WLED , 30K hours , Without Driver |
| touch screen | Without |
| application | Desktop Monitor Industrial Medical Imaging |
