| Nama Wahi | LD290EJN-FPN1 |
| Waitohu | LG Display |
| Rahi | 28.6 |
| Taupānga | Digital Signage Stre |
| Whakatau | 1920×540 |
| Te tito | LCM , a-Si TFT-LCD |
| Tirohanga | |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | 4 |
| Atanga | LVDS |
| manufacturer | LG Display |
| screen size | 28.6 inch (Native bar) |
| pixel number | 1920(RGB)×540 69PPI |
| active area(mm) | 698.4 × 196.425 (H×V) |
| bezel area(mm) | 700.4 × 198.44 (H×V) |
| luminance | 500 cd/m² (Typ.) |
| viewing angle | 89/89/89/89 (Min.)(CR≥10) |
| good view at | Symmetry |
| color depth | 16.7M 72% NTSC |
| mass | 1.80/2.00Kgs (Typ./Max.) |
| refresh rate | 60Hz |
| signal type | LVDS (2 ch, 8-bit) , 51 pins Connector |
| voltage supply | 12.0V (Typ.) |
| max. ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

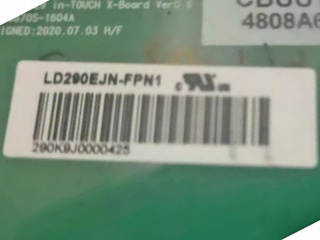

| model name | LD290EJN-FPN1 |
| screen type | LCM , a-Si TFT-LCD |
| arrangement | RGB Vertical Stripe |
| outline(mm) | 712.8 × 213.74 (H×V×D) |
| treatment | Antiglare, Hard coating (4H) |
| contrast ratio | 1000 : 1 (Typ.) (TM) |
| response | 6 (Typ.)(G to G) ms |
| work mode | IPS, Normally Black, Transmissive |
| backlight | 4 strings WLED , 50K hours , No Driver |
| used for | Digital Signage Stretched Bar LCD |
| touchscreen | In-Cell Touch |
