BOE HV320WX2-200 Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com

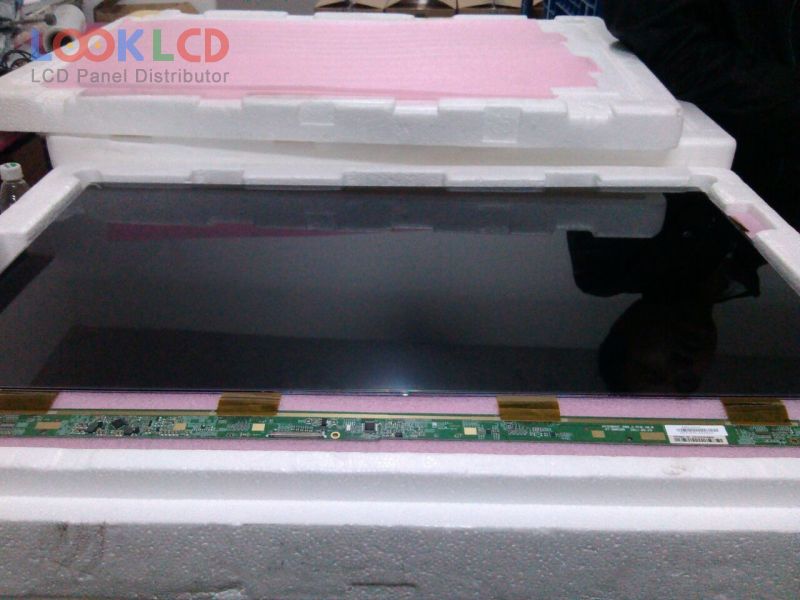

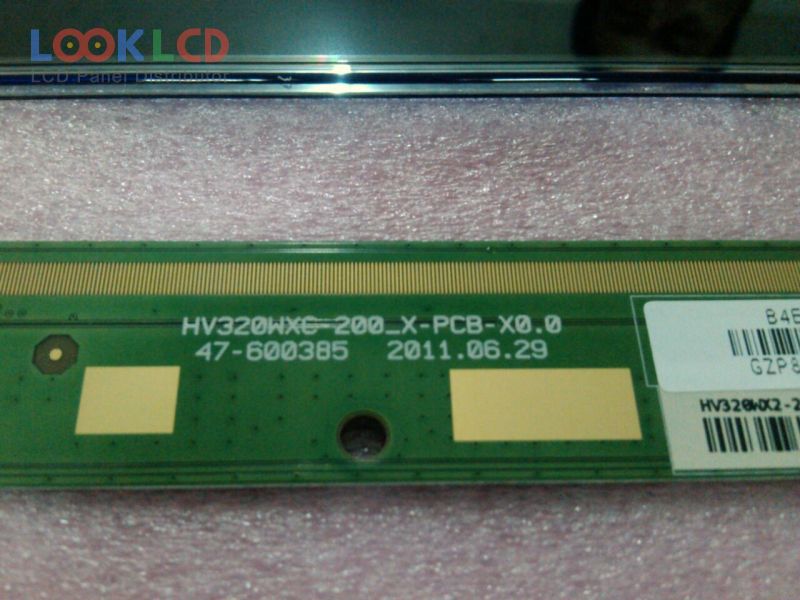

HV320WX2-200


Waitohu
BOE
Rahi
31.5
Taupānga
LCTV
Whakatau
1366×768
Te tito
CELL
Tirohanga
0
CR
1200:1
Nga Tae
16.7M
Whakamuri
No B/L
Atanga
LVDS
In Stock
10234
Whakatakotoranga

Nama Wahi HV320WX2-200
WaitohuBOE
Rahi31.5
TaupāngaLCTV
Whakatau1366×768
Te titoCELL
Tirohanga0
CR1200:1
Nga Tae16.7M
WhakamuriNo B/L
AtangaLVDS
panel brandBOE
panel modelHV320WX2-200
panel type a-Si TFT-LCD , CELL
panel size31.5 inch
resolution1366(RGB)×768 , WXGA
display modeAFFS, Normally Black, Transmissive
active area697.685×392.256 mm
outline716×411.1 mm
surfaceAntiglare (Haze 10%), Hard coating (3H)
glass depth0.70+0.70 mm
transmissivity5.25% (Typ.)(with Polarizer)
contrast ratio1200:1 (Typ.)
display colors16.7M (8-bit)
response time8 (Typ.)(G to G)
viewing angle89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
frequency60Hz
signal interfaceLVDS (1 ch, 8-bit), 30 pins
input voltage12.0V (Typ.)
applicationLCTV
Tauira Whanau
HV320WHB-N00 BOE 31.5 1366×768
HV320WHB-N06 BOE 31.5 1366×768
HV320WHB-N80 BOE 31.5 1366×768
HV320WX2-200 BOE 31.5 1366×768
HV320WX2-201 BOE 31.5 1366×768
HV320WX2-206 BOE 31.5 1366×768
HV320WX2-500 BOE 31.5 1366×768
HV320WXC-100 BOE 31.5 1366×768
HV320WXC-201 BOE 31.5 1366×768
LC320EXN-SEA2 LG Display 31.5 1366×768
