| Nama Wahi | HV320FHB-N80 |
| Waitohu | BOE |
| Rahi | 32.0 |
| Taupānga | TV Sets |
| Whakatau | 1920×1080 |
| Te tito | a-Si TFT-LCD , CELL |
| Tirohanga | |
| CR | 1200:1 |
| Nga Tae | 16.7M |
| Whakamuri | No |
| Atanga | LVDS |
| panel brand | BOE |
| panel size | 32.0" |
| resolution | 1920(RGB)×1080, FHD, 69PPI |
| display area | 698.4(W)×392.85(H) mm |
| outline size | 708.4(W)×405.4(H) ×1.36(D) mm |
| brightness | 0 cd/m² |
| viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| best view on | Symmetry |
| glass depth | 0.50+0.50 mm |
| display colors | 16.7M 98% sRGB |
| frequency | 60Hz |
| driver ic | COF Built-in 6 source chips |
| panel weight | 850g (Typ.) |
| signal interface | LVDS (2 ch, 8-bit) , 51 pins Connector |
| input voltage | 12.0V (Typ.) |
| environment | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |

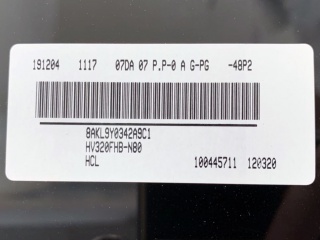

| panel model | HV320FHB-N80 |
| panel type | a-Si TFT-LCD , CELL |
| pixel format | RGB Vertical Stripe |
| bezel opening | - |
| surface | Antiglare (Haze 1%), Hard coating (3H) |
| contrast ratio | 1200:1 (Typ.) (TM) |
| display mode | ADSDS, Normally Black, Transmissive |
| response time | 8 (Typ.)(G to G) |
| transmissivity | 5.0% (Typ.)(with Polarizer) |
| lamp type | No B/L |
| touch screen | Without |
| application | TV Sets |
