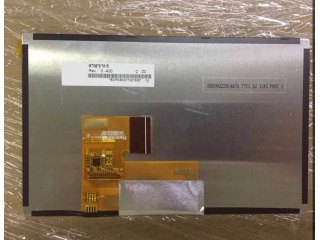

| Nama Wahi | HSD070PFW5-A00 |
| Waitohu | HannStar |
| Rahi | 7.0 |
| Taupānga | Pad & Tablet |
| Whakatau | 1024×600 |
| Te tito | LCM , a-Si TFT-LCD |
| Tirohanga | |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | 3S7P |
| Atanga | MIPI |
| manufacturer | HannStar |
| model name | HSD070PFW5-A00 |
| screen size | 7.0 inch |
| screen type | LCM , a-Si TFT-LCD |
| pixel number | 1024(RGB)×600 (WSVGA) 169PPI |
| arrangement | RGB Vertical Stripe |
| active area(mm) | 153.6 × 90 (H×V) |
| outline(mm) | 161.16 × 100.97 × 5.04 (H×V×D) |
| bezel area(mm) | - |
| treatment | Hard coating |
| luminance | 550 cd/m² (Typ.) |
| contrast ratio | 1000 : 1 (Typ.) (TM) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| response | 13/15 (Typ.)(Tr/Td) ms |
| good view at | Symmetry |
| work mode | IPS Pro, Normally Black, Transmissive |
| color depth | 16.7M 50% NTSC |
| backlight | 3S7P WLED , 10K hours , With LED Driver |
| mass | 75.0/85.0g (Typ./Max.) |
| used for | Pad & Tablet |
| refresh rate | 60Hz |
| touchscreen | Without |
| signal type | MIPI (4 data lanes) , 40 pins Connector |
| voltage supply | 1.8/3.3/10.7/17/-10V (Typ.)(VDD1/VDD2/AVDD/VGH/VGL) |
| max. ratings | Storage Temp.: -20 ~ 65 °C Operating Temp.: -10 ~ 60 °C |
