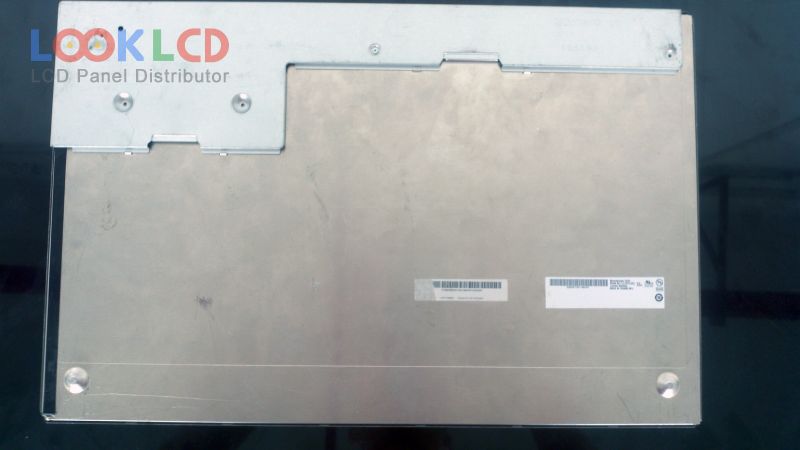

| Nama Wahi | G220SW02 V0 |
| Waitohu | AUO |
| Rahi | 22.0 |
| Taupānga | IA |
| Whakatau | 1680×1050 |
| Te tito | LCM |
| Tirohanga | 300 |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | AUO |
| panel model | G220SW02 V0 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 22.0 inch |
| resolution | 1680(RGB)×1050 , WSXGA+ |
| display mode | TN, Normally White, Transmissive |
| active area | 473.76×296.1 mm |
| outline | 493.7×320.1×23 mm |
| surface | Glare (Haze 0%), Hard coating (3H) |
| brightness | 300 cd/m² (Typ.) |
| contrast ratio | 1000:1 (Typ.) |
| display colors | 16.7M (6-bit + Hi-FRC), CIE193172% |
| response time | 15/10 (Typ.)(Tr/Td) |
| viewing angle | 85/85/70/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 9S6PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| input voltage | 5.0V (Typ.) |
| application | IA |
