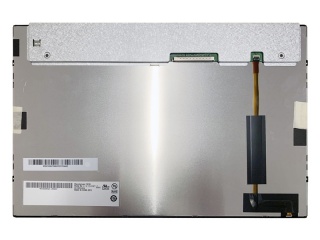

| Nama Wahi | G121EAN01.4 |
| Waitohu | AUO |
| Rahi | 12.1 |
| Taupānga | Industrial Medical I |
| Whakatau | 1280×800 |
| Te tito | LCM , a-Si TFT-LCD |
| Tirohanga | |
| CR | 1000:1 |
| Nga Tae | 262K/16.2M |
| Whakamuri | WLED |
| Atanga | LVDS |
| manufacturer | AUO |
| screen size | 12.1 inch |
| pixel number | 1280(RGB)×800 (WXGA) 124PPI |
| active area(mm) | 261.12 × 163.2 (H×V) |
| bezel area(mm) | 264.22 × 168.12 (H×V) |
| luminance | 300 cd/m² (Typ.) |
| viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| good view at | Symmetry |
| color depth | 262K/16.2M 99% sRGB |
| mass | 480g (Max.) |
| refresh rate | 60Hz |
| signal type | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| voltage supply | 3.3V (Typ.) |
| max. ratings | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
| model name | G121EAN01.4 |
| screen type | LCM , a-Si TFT-LCD |
| arrangement | RGB Vertical Stripe |
| outline(mm) | 278 × 184 × 9.64 (H×V×D) |
| treatment | Antiglare, Hard coating (3H) |
| contrast ratio | 1000 : 1 (Typ.) (TM) |
| response | 25 (Typ.)(Tr+Td) ms |
| work mode | AHVA, Normally Black, Transmissive |
| backlight | WLED , 30K hours , With LED Driver |
| used for | Industrial Medical Imaging |
| touchscreen | Without |
