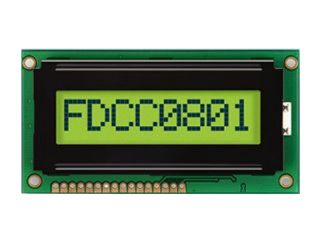

| Nama Wahi | FC0801A01-FHYYBW-51LR |
| Waitohu | Fordata |
| Rahi | 2.3 |
| Taupānga | Instruments & Me |
| Whakatau | 8×13 |
| Te tito | STN-LCD, LCM |
| Tirohanga | |
| CR | 10:1 |
| Nga Tae | Monochrome |
| Whakamuri | YG-LED |
| Atanga | 8-bit |
| panel brand | Fordata |
| panel model | FC0801A01-FHYYBW-51LR |
| panel size | 2.3" |
| panel type | STN-LCD, LCM |
| display format | 8 characters × 1 lines, 3PPI |
| font format | 5×8 dots |
| character size | 6.45×10.75(W×H) mm |
| character pitch | 7.15×10.75(W×H) mm |
| display area | 56.5(W)×10.75(H) mm |
| bezel opening | 61.0(W)×15.8(H) mm |
| outline size | 84(W)×44(H) ×13.5(D) mm |
| surface | - |
| brightness | - |
| contrast ratio | 10:1 (Typ.) (TM) |
| viewing angle | - |
| display mode | STN, Yellow/Green (Positive), Transflective |
| best view on | 6 o'clock |
| response time | 150/150 (Typ.)(Tr/Tf) |
| display colors | Monochrome |
| lamp type | YG-LED , 20K hours , Without Driver |
| frequency | - |
| touch screen | Without |
| panel weight | - |
| application | Instruments & Meters |
| signal interface | 8-bit parallel , 16 pins Pad |
| input voltage | 5.0V (Typ.) |
| environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
