Nama Wahi | COM43T4N95VLS |
Waitohu | Ortustech |
Rahi | 4.3 |
Taupānga | Handheld & PDA |
Whakatau | 480×272 |
Te tito | LCM , a-Si TFT-LCD |
Tirohanga | |
CR | 350:1 |
Nga Tae | 16.7M |
Whakamuri | 7S1P |
Atanga | Parallel |
manufacturer | Ortustech |
model name | COM43T4N95VLS |
screen size | 4.3 inch |
screen type | LCM , a-Si TFT-LCD |
pixel number | 480(RGB)×272 (WQVGA) 128PPI |
arrangement | RGB Vertical Stripe |

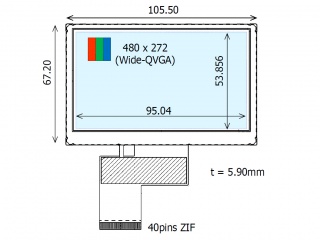

active area(mm) | 95.04 × 53.856 (H×V) |
outline(mm) | 105.5 × 67.2 (H×V×D) |
bezel area(mm) | - |
treatment | Hard coating (3H) |
luminance | 500 cd/m² (Typ.) |
contrast ratio | 350 : 1 (Typ.) (TM) |
viewing angle | 70/70/60/50 (Typ.)(CR≥10) |
response | 40/60 (Max.)(Tr/Td) ms |
good view at | - |
work mode | TN, Normally White, Transmissive |
color depth | 16.7M 67% NTSC |
backlight | 7S1P WLED , 70K hours , No Driver |
mass | - |
used for | Handheld & PDA |
refresh rate | 60Hz |
touchscreen | Without |
signal type | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
voltage supply | 3.3V (Typ.) |
max. ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
