| Nama Wahi | COM24H2P71ULC |
| Waitohu | Ortustech |
| Rahi | 2.4 |
| Taupānga | Handheld & PDA |
| Whakatau | 240×320 |
| Te tito | a-Si TFT-LCD, LCM |
| Tirohanga | |
| CR | 800:12:1 |
| Nga Tae | 262K |
| Whakamuri | 2S1P |
| Atanga | Parallel |
| panel brand | Ortustech |
| panel model | COM24H2P71ULC |
| panel size | 2.4" |
| panel type | a-Si TFT-LCD, LCM |
| resolution | 240(RGB)×320, QVGA, 169PPI |
| pixel format | RGB Vertical Stripe |

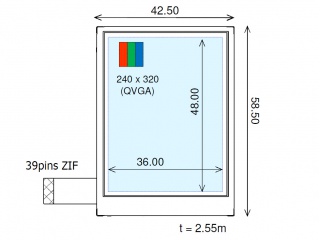

| display area | 36(W)×48(H) mm |
| bezel opening | - |
| outline size | 42.5(W)×58.5(H) ×5.55(D) mm |
| surface | Hard coating (3H) |
| brightness | 270 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) (TM) 2:1 (Typ.) (RF) |
| viewing angle | 80/80/80/80 (Min.)(CR≥10) |
| display mode | VA, Normally Black, Transflective |
| best view on | Symmetry |
| response time | 50 (Typ.)(Tr+Td) |
| display colors | 262K 50% NTSC |
| lamp type | 2S1P WLED , 50K hours , Without Driver |
| frequency | 60Hz |
| touch screen | Without |
| panel weight | 13.5g (Typ.) |
| application | Handheld & PDA |
| signal interface | Parallel RGB (1 ch, 6-bit) , 39 pins FPC |
| input voltage | 3.3/3.3V (Typ.)(VCCIO/VDD) |
| environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
