BT140GW01 V.A

BT140GW01 V.A
BT140GW01 V.A
BT140GW01 V.A
BT140GW01 V.A thumb BT140GW01 V.A thumb BT140GW01 V.A thumb
Waitohu
Innolux
Rahi
14.0
Taupānga
NBPC
Whakatau
1366×768
Te tito
LCM
Tirohanga
220
CR
600:1
Nga Tae
262K
Whakamuri
WLED
Atanga
LVDS
In Stock
16133
Whakatakotoranga

Nama Wahi BT140GW01 V.A
WaitohuInnolux
Rahi14.0
TaupāngaNBPC
Whakatau1366×768
Te titoLCM
Tirohanga220
CR600:1
Nga Tae262K
WhakamuriWLED
AtangaLVDS
panel brandCHIMEI INNOLUX
panel modelBT140GW01 V.A
panel type a-Si TFT-LCD , LCM
panel size14.0 inch
resolution1366(RGB)×768 , WXGA
display modeTN, Normally White, Transmissive
active area309.399×173.952 mm
outline324×192.5×5.2 mm
shape styleWedge (PCBA Bent, Depth ≥5.2mm)
surfaceGlare (Haze 0%), Hard coating (3H)
brightness220 cd/m² (Typ.)
contrast ratio600:1 (Typ.)
display colors262K (6-bit), CIE193145%
response time8 (Typ.)(G to G)
viewing angle40/40/15/30 (Min.)(CR≥10)(L/R/U/D)
frequency60Hz
lamp typeWLEDEmbedded (LED Driver)

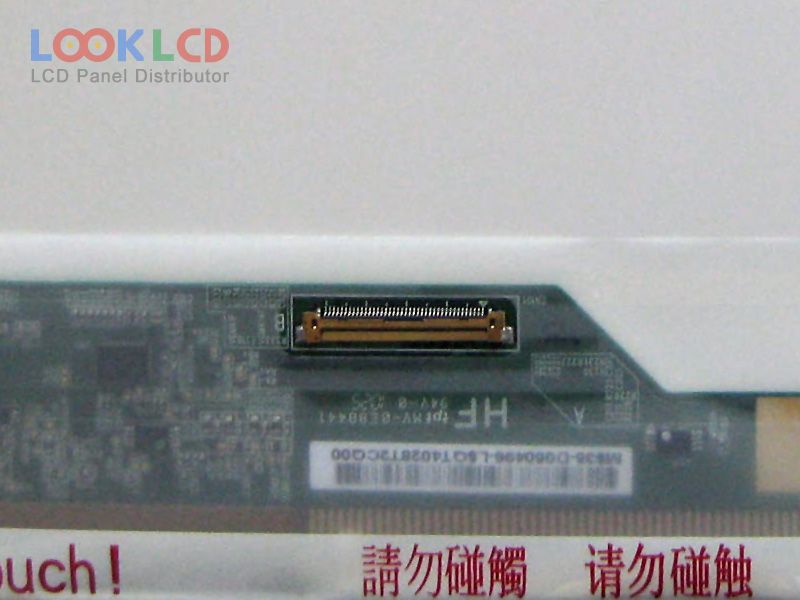

signal interfaceLVDS (1 ch, 6-bit), 40 pins
input voltage3.3V (Typ.)
applicationNBPC
