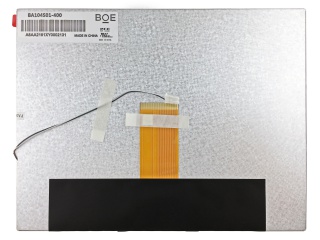

| Nama Wahi | BA104S01-400 |
| Waitohu | BOE |
| Rahi | 10.4 |
| Taupānga | Digital Photo Frame |
| Whakatau | 800×600 |
| Te tito | a-Si TFT-LCD , LCM |
| Tirohanga | |
| CR | 800:1 |
| Nga Tae | 262K/16.7M |
| Whakamuri | 3S12P |
| Atanga | Parallel |
| panel brand | BOE |
| panel size | 10.4" |
| resolution | 800(RGB)×600, SVGA, 96PPI |
| display area | 211.2(W)×158.4(H) mm |
| outline size | 228.4(W)×175.4(H) mm |
| brightness | 350 cd/m² (Typ.) |
| viewing angle | 80/80/65/75 (Typ.)(CR≥10) |
| best view on | - |
| display colors | 262K/16.7M 55% NTSC |
| frequency | 60Hz |
| panel weight | TBD |
| signal interface | Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC |
| input voltage | 3.3/9/18/-8V (Typ.)(VCC/AVDD/VGH/VGL) |
| environment | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| panel model | BA104S01-400 |
| panel type | a-Si TFT-LCD , LCM |
| pixel format | RGB Vertical Stripe |
| bezel opening | 214.4(W)×161.6(H) mm |
| surface | Antiglare |
| contrast ratio | 800:1 (Typ.) (TM) |
| display mode | TN, Normally White, Transmissive |
| response time | 30 (Typ.)(Tr+Td) |
| lamp type | 3S12P WLED , 20K hours , Without Driver |
| touch screen | Without |
| application | Digital Photo Frame Home Appliance |
