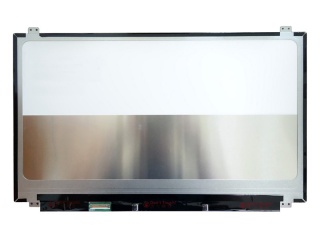

| Nama Wahi | B173ZAN01.1 |
| Waitohu | AUO |
| Rahi | 17.3 |
| Taupānga | Laptop |
| Whakatau | 3840×2160 |
| Te tito | LCM , a-Si TFT-LCD |
| Tirohanga | |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | eDP |
| manufacturer | AUO |
| screen size | 17.3 inch |
| pixel number | 3840(RGB)×2160 (UHD) 255PPI |
| active area(mm) | 382.12 × 214.94 (H×V) |
| bezel area(mm) | - |
| luminance | 300 cd/m² (Typ.) |
| viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| good view at | Symmetry |
| color depth | 16.7M 100% Adobe RGB |
| outline shape | Flat (PCBA Flat, T3.4~4.0mm) |
| refresh rate | 60Hz |
| signal type | eDP (4 Lanes) , eDP1.3 , 40 pins Connector |
| voltage supply | 3.3V (Typ.) |
| max. ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| model name | B173ZAN01.1 (AUO119B) |
| screen type | LCM , a-Si TFT-LCD |
| arrangement | RGB Vertical Stripe |
| outline(mm) | 398.1 × 252.5 × 4 (H×V×D) |
| treatment | Antiglare, Hard coating (3H) |
| contrast ratio | 1000 : 1 (Typ.) (TM) |
| response | 27 (Typ.)(Tr+Td) ms |
| work mode | AHVA, Normally Black, Transmissive |
| backlight | WLED , 15K hours , With LED Driver |
| used for | Laptop |
| touchscreen | Without |
