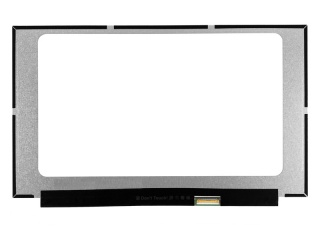

| Nama Wahi | B156XTN08.0 |
| Waitohu | AUO |
| Rahi | 15.6 |
| Taupānga | Laptop |
| Whakatau | 1366×768 |
| Te tito | a-Si TFT-LCD, LCM |
| Tirohanga | |
| CR | 500:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | eDP |
| panel brand | AUO |
| panel model | B156XTN08.0 (AUO20EC) |
| panel size | 15.6" |
| panel type | a-Si TFT-LCD, LCM |
| resolution | 1366(RGB)×768, WXGA, 100PPI |
| pixel format | RGB Vertical Stripe |
| display area | 344.232(W)×193.536(H) mm |
| bezel opening | - |
| outline size | 350.66(W)×216.15(H) ×3.2(D) mm |
| surface | Glare (Haze 0%) |
| brightness | 220 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) (TM) |
| viewing angle | 45/45/15/35 (Min.)(CR≥10) |
| display mode | TN, Normally White, Transmissive |
| best view on | 6 o'clock |
| response time | 8 (Typ.)(Tr+Td) |
| display colors | 262K 45% NTSC |
| lamp type | WLED , 15K hours , With LED Driver |
| frequency | 60Hz |
| touch screen | - |
| shape style | Slim (PCBA Flat, T≤3.2mm) |
| application | Laptop |
| signal interface | eDP (1 Lane) , eDP1.2 , 40 pins Connector |
| input voltage | 3.3V (Typ.) |
| environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
