| Nama Wahi | B156HAN02.2 HW1A |
| Waitohu | AUO |
| Rahi | 15.6 |
| Taupānga | Laptop |
| Whakatau | 1920×1080 |
| Te tito | LCM , a-Si TFT-LCD |
| Tirohanga | |
| CR | 800:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | eDP |
| manufacturer | AUO |

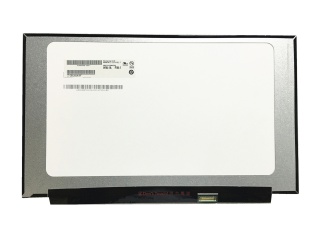

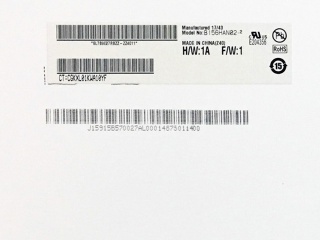

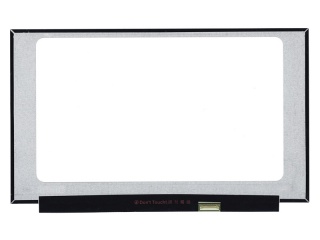

| model name | B156HAN02.2 HW1A (AUO22ED) |
| screen size | 15.6 inch |
| screen type | LCM , a-Si TFT-LCD |
| pixel number | 1920(RGB)×1080 (FHD) 141PPI |
| arrangement | RGB Vertical Stripe |
| active area(mm) | 344.16 × 193.59 (H×V) |
| outline(mm) | 350.56 × 216.15 × 3.2 (H×V×D) |
| bezel area(mm) | - |
| treatment | Glare (Haze 0%) |
| luminance | 220 cd/m² (Typ.) |
| contrast ratio | 800 : 1 (Typ.) (TM) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| response | 25 (Typ.)(Tr+Td) ms |
| good view at | Symmetry |
| work mode | AHVA, Normally Black, Transmissive |
| color depth | 262K 45% NTSC |
| backlight | WLED , 15K hours , With LED Driver |
| outline shape | Slim (PCBA Flat, T≤3.2mm) |
| used for | Laptop |
| refresh rate | 60Hz |
| touchscreen | Without |
| signal type | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| voltage supply | 3.3V (Typ.) |
| max. ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
