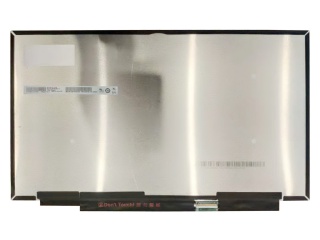

Nama Wahi | B139HAN03.0 |
Waitohu | AUO |
Rahi | 14.0 |
Taupānga | Laptop |
Whakatau | 1920×1080 |
Te tito | LCM , a-Si TFT-LCD |
Tirohanga | |
CR | 800:1 |
Nga Tae | 16.2M |
Whakamuri | WLED |
Atanga | eDP |
manufacturer | AUO |
screen size | 14.0 inch |
pixel number | 1920(RGB)×1080 (FHD) 157PPI |
active area(mm) | 309.37 × 174.02 (H×V) |
bezel area(mm) | - |
luminance | 300 cd/m² (Typ.) |
viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
good view at | Symmetry |
color depth | 16.2M 72% NTSC |
outline shape | Slim (PCBA Flat, T≤3.2mm) |
refresh rate | 60Hz |
signal type | eDP (2 Lanes) , eDP1.3 , 30 pins Connector |
voltage supply | 3.3V (Typ.) |
max. ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
model name | B139HAN03.0 (AUO303D) |
screen type | LCM , a-Si TFT-LCD |
arrangement | RGB Vertical Stripe |
outline(mm) | 315.1 × 197.65 × 2.5 (H×V×D) |
treatment | Glare (Haze 0%), Hard coating (3H) |
contrast ratio | 800 : 1 (Typ.) (TM) |
response | 25 (Typ.)(Tr+Td) ms |
work mode | AHVA, Normally Black, Transmissive |
backlight | WLED , 15K hours , With LED Driver |
used for | Laptop |
touchscreen | Without |
