| Nama Wahi | AMSA05BV09 |
| Waitohu | SAMSUNG |
| Rahi | 10.5 |
| Taupānga | Pad & Tablet |
| Whakatau | 2560×1600 |
| Te tito | AM-OLED, OLED |
| Tirohanga | |
| CR | 54000:1 |
| Nga Tae | 16.7M |
| Whakamuri | self |
| Atanga | MIPI |
| panel brand | SAMSUNG |

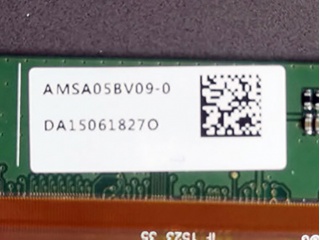

| panel model | AMSA05BV09 |
| panel size | 10.5" |
| panel type | AM-OLED, OLED |
| resolution | 2560(RGB)×1600, 287PPI |
| pixel format | S-Stripe RGB |
| display area | 226.56(W)×141.6(H) mm |
| bezel opening | - |
| outline size | 251.4(W)×171.1(H) mm |
| surface | - |
| brightness | 300 cd/m² (Typ.) |
| contrast ratio | 54000:1 (Min.) (TM) |
| viewing angle | 80/80/80/80 (Typ.)(CR≥200) |
| display mode | - |
| best view on | Symmetry |
| response time | - |
| display colors | 16.7M 100% NTSC |
| lamp type | self |
| frequency | 60Hz |
| touch screen | PCAP |
| driver ic | COG Built-in EA8002ASA |
| panel weight | 143/148g (Typ./Max.) |
| application | Pad & Tablet |
| signal interface | MIPI (2 ch, 4 data lanes) , 80 pins Connector |
| input voltage | 1.8/3.3/3.8V (Typ.)(VDD1/VDD3/VBAT) |
| environment | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
