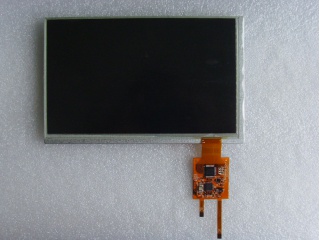

| Nama Wahi | AM-800480RBTMQW-TA1H-A |
| Waitohu | AMPIRE |
| Rahi | 7.0 |
| Taupānga | Industrial |
| Whakatau | 800×480 |
| Te tito | a-Si TFT-LCD, LCM |
| Tirohanga | |
| CR | 400:1 |
| Nga Tae | 262K |
| Whakamuri | 3S10P |
| Atanga | LVDS |
| panel brand | AMPIRE |
| panel model | AM-800480RBTMQW-TA1H-A |
| panel size | 7.0" |
| panel type | a-Si TFT-LCD, LCM |
| resolution | 800(RGB)×480, WVGA, 133PPI |
| pixel format | RGB Vertical Stripe |
| display area | 152.4(W)×91.44(H) mm |
| bezel opening | 155.3(W)×94.3(H) mm |
| outline size | 165(W)×104.44(H) ×8.06(D) mm |
| surface | - |
| brightness | 255 cd/m² (Typ.) |
| contrast ratio | 400:1 (Typ.) (TM) |
| viewing angle | 70/70/70/60 (Typ.)(CR≥10) |
| display mode | TN, Normally White, Transmissive |
| best view on | 6 o'clock |
| response time | 5/11 (Typ.)(Tr/Td) |
| display colors | 262K |
| lamp type | 3S10P WLED , 40K hours , Without Driver |
| frequency | 60Hz |
| touch screen | PCAP |
| panel weight | TBD |
| application | Industrial |
| signal interface | LVDS (1 ch, 6-bit) , 20 pins Connector |
| input voltage | 3.3V (Typ.) |
| environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
