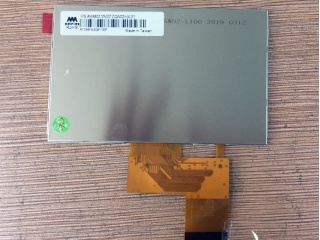

| Nama Wahi | AM-480272MGTZQW-02H |
| Waitohu | AMPIRE |
| Rahi | 4.3 |
| Taupānga | Industrial Outdoor H |
| Whakatau | 480×272 |
| Te tito | a-Si TFT-LCD, LCM |
| Tirohanga | |
| CR | 800:1 |
| Nga Tae | 16.7M |
| Whakamuri | 5S3P |
| Atanga | Parallel |
| panel brand | AMPIRE |
| panel model | AM-480272MGTZQW-02H |
| panel size | 4.3" |
| panel type | a-Si TFT-LCD, LCM |
| resolution | 480(RGB)×272, WQVGA, 128PPI |
| pixel format | RGB Vertical Stripe |
| display area | 95.04(W)×53.856(H) mm |
| bezel opening | 97.6(W)×56.0(H) mm |
| outline size | 105.6(W)×67.2(H) ×3.1(D) mm |
| surface | - |
| brightness | 1000 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) (TM) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| display mode | IPS, Normally Black, Transmissive |
| best view on | Symmetry |
| response time | 30 (Typ.)(Tr+Td) |
| display colors | 16.7M 51% NTSC |
| lamp type | 5S3P WLED , Without Driver |
| frequency | 60Hz |
| touch screen | Without |
| panel weight | - |
| application | Industrial Outdoor High Brightness Automotive Display |
| signal interface | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| input voltage | 3.3V (Typ.) |
| environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
