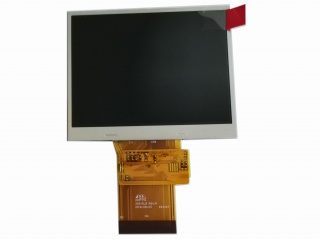

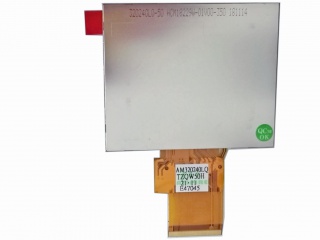

| Nama Wahi | AM-320240LQTZQW-50H |
| Waitohu | AMPIRE |
| Rahi | 3.5 |
| Taupānga | Industrial Outdoor H |
| Whakatau | 320×240 |
| Te tito | a-Si TFT-LCD , LCM |
| Tirohanga | |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | 6S2P |
| Atanga | Parallel |
| panel brand | AMPIRE |
| panel size | 3.5" |
| resolution | 320(RGB)×240, QVGA, 115PPI |
| display area | 70.08(W)×52.56(H) mm |
| outline size | 76.9(W)×63.9(H) ×3.45(D) mm |
| brightness | 800 cd/m² (Typ.) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| best view on | Symmetry |
| display colors | 16.7M 60% NTSC |
| frequency | 60Hz |
| panel weight | - |
| signal interface | Parallel RGB (1 ch, 8-bit) + SPI , 50 pins FPC |
| input voltage | 3.3V (Typ.) |
| environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| panel model | AM-320240LQTZQW-50H |
| panel type | a-Si TFT-LCD , LCM |
| pixel format | RGB Vertical Stripe |
| bezel opening | 72.88(W)×54.94(H) mm |
| surface | - |
| contrast ratio | 1000:1 (Typ.) (TM) |
| display mode | Normally Black, Transmissive |
| response time | 30 (Typ.)(Tr+Td) |
| lamp type | 6S2P WLED , 36K hours , Without Driver |
| touch screen | Without |
| application | Industrial Outdoor High Brightness Instruments & Meters |
